Both hybrid steel piers and all-steel piers are designed to transfer a foundation's load past active surface soils to stable ground below. The question "Hybrid Steel or All-Steel?" comes down to how the driven support column is built. A hybrid steel pier combines a steel shaft through the upper active soil zone with high-pressure-tested concrete cylinders driven deeper to refusal, delivering strong long-term support at a lower cost. An all-steel pier uses steel throughout its entire driven depth and is the premium option for sites with deeper bearing requirements, heavier loads, or specific soil conditions. In many residential situations, both systems can provide an appropriate repair. The right choice depends on a site-specific, engineer-reviewed assessment, not a preference for the more expensive option.
What Is the Difference Between a Hybrid Steel Pier and an All-Steel Pier?
A hybrid steel pier uses a steel shaft through the upper active soil zone and high-pressure-tested concrete cylinders in the deeper stable zone. An all-steel pier uses steel throughout its entire driven depth, with no material transition at any point.
Both pier types are driven to refusal. "Driven to refusal" means the pier is hydraulically advanced until resistance confirms the system has reached stable bearing ground. Neither system bores or digs a hole before installation.
The hybrid design takes advantage of what concrete cylinders do well at depth. Below the active clay zone, soil moisture and chemistry are more stable, and high-pressure-tested concrete performs reliably in that environment.
The all-steel design keeps a single material from the foundation surface down to the bearing zone. That consistency can matter on sites with unusual soil conditions or load requirements.
How are hybrid steel piers driven to refusal?
A hydraulic jack is positioned beneath the foundation footing at the pier point. Steel shaft sections advance through the upper soil. Once the shaft clears the active soil zone, concrete cylinders are added sequentially and driven until hydraulic resistance confirms refusal.
The hydraulic pressure required to drive the pier to refusal is recorded as confirmation of bearing capacity. Pflugerville's Blackland Prairie clay can stay active for several feet below grade, which makes the depth of the transition point between the steel shaft and concrete cylinders a structurally meaningful detail on every job.
How Is a Hybrid Steel Pier Actually Constructed?
A hybrid steel pier is built in two stages. A steel shaft is first advanced through the unstable upper clay zone. Then high-pressure-tested concrete cylinders are driven below that zone until the system reaches refusal.
The steel shaft handles the portion of soil that swells and shrinks with seasonal moisture changes. In Central Texas, that active zone can extend several feet below grade. The steel shaft is engineered to move with that zone without degrading.
Below the transition point, concrete cylinders take over. "High-pressure-tested" means each cylinder has been load-tested before it ever goes into the ground, not simply cast and assumed to meet spec.
What does high-pressure-tested concrete mean for a pier cylinder?
High-pressure testing verifies that each concrete cylinder can carry the load it will be asked to carry before installation. A cylinder that fails testing does not get installed. This pre-installation verification step is what separates a high-pressure-tested cylinder from a standard cast concrete piece.
The construction sequence for a hybrid steel pier follows this order:
- Excavate access pit at the pier point beneath the foundation perimeter.
- Position hydraulic jack under the foundation footing.
- Drive the steel shaft sections through the active upper soil zone.
- Transition to high-pressure-tested concrete cylinders below the active zone.
- Continue driving cylinders sequentially until the system reaches refusal.
- Transfer the foundation load to the completed pier and restore grade.
The two-material design lets the system perform at a lower total cost than all-steel without compromising integrity at the bearing zone.
How Is an All-Steel Pier Different in Construction?
An all-steel pier uses steel pipe sections for the entire driven depth. There is no transition to a concrete component at any point during installation.
Sections of Schedule 80 steel pipe are connected and hydraulically advanced one segment at a time. Driving continues until the system reaches refusal at stable bearing ground.
What is Schedule 80 steel and why does it matter for foundation piers?
Schedule 80 refers to the wall thickness of the steel pipe. A thicker wall means greater load capacity and more resistance to soil pressure along the driven length. Schedule 80 pipe is the standard used in pressed steel piling for residential and commercial foundation repair in Central Texas.
Steel's consistent material properties deliver uniform load transfer from the foundation footing down to the bearing zone. There is no material-transition point where two different components meet, which simplifies the structural profile of the repair.
All-steel systems are the premium option because Schedule 80 steel tolerates a wider range of soil conditions and load scenarios without relying on the performance of a secondary material at depth. The absence of a material transition can matter on sites with unusually corrosive soils, very deep bearing requirements, or heavier structural loads from two-story construction.
Engineer-reviewed repair plans confirm which material is appropriate for a given site. That determination is made at the engineering level, not at the point of sale.
Which Pier System Works Better in Expansive Clay Soil?
Both systems are designed to pass through expansive clay and bear on stable soil below it. Neither system relies on the clay itself for long-term support.
Pflugerville sits on Blackland Prairie Vertisol clay, a soil series that swells significantly when wet and shrinks and cracks when dry. Prolonged La Niña drought cycles, including severe drought conditions Central Texas has seen in recent years, desiccate clay soils well below their normal depth. When that happens, foundation perimeters drop faster than interiors, producing the symptoms homeowners search for most: sticking doors, diagonal drywall cracks at window corners, and brick veneer stair-step cracking.
The key performance factor in Blackland Prairie clay is reaching refusal in stable ground below the active zone. A pier driven to refusal will perform regardless of whether it is a hybrid system or an all-steel system. Soil chemistry, depth to stable bearing, and mineral corrosivity are what actually influence which system the engineer selects.
Does drought depth change which pier system a site needs?
Severe drought years can push the stable bearing zone deeper than it sits during normal seasonal cycles. When stable ground is deeper, the total driven length of any pier increases. For sites where bearing depth pushes significantly past typical residential norms, the engineer may favor all-steel because a single consistent material is easier to engineer for greater depth.
For a thorough look at how pier type, soil conditions, and bearing depth interact in this region, our pier options for Pflugerville's Blackland Prairie clay soils resource walks through each system in the context of local soil profiles.
Homes built quickly on minimally prepared clay pads during Pflugerville's early-2000s construction expansion may have varying bearing depths depending on how far settlement has progressed at each pier point. That variability is exactly why a site-specific assessment matters before any system is selected.
How Do Construction Differences Affect Long-Term Performance?
When both systems are driven to refusal in stable ground, long-term performance depends on material durability at depth. Both systems are engineered to last decades when properly installed.
The hybrid system's high-pressure-tested concrete cylinders perform reliably below the active soil zone because soil moisture and chemistry are more stable at bearing depth. The pre-installation load verification on each cylinder is the quality control step that supports long-term confidence in the system.
The all-steel system's single-material construction removes any question about a material-transition point over time. For homeowners who want the simplest possible repair profile, eliminating that transition point is a genuine engineering benefit rather than a marketing claim.
Does a hybrid pier handle foundation re-leveling the same way an all-steel pier does?
Yes. Once both systems are at refusal, the load-transfer and lifting mechanics are identical. The hydraulic jack raises the foundation to grade at each pier point regardless of whether the pier below is hybrid or all-steel. The re-leveling step does not know or care what material is beneath it — it responds to pier capacity, and both systems are engineered to meet that requirement.
Neither system requires excavation of the entire foundation perimeter. Both are installed from small access pits at individual pier points, which leaves landscaping and interior floor coverings largely undisturbed. Repair plans for both systems are engineer-reviewed, meaning performance expectations are confirmed by a third party before the job begins.
When Would an Engineer Recommend One System Over the Other?
An engineer recommends one system over the other based on site-specific factors: soil depth, load requirements, access conditions, and soil corrosivity. Cost preference alone is not an engineering rationale.
Conditions that may favor all-steel:
- Unusually deep bearing requirements where a longer driven column is needed
- Higher structural loads from two-story homes or commercial construction
- Soil reports indicating corrosive mineral content at depth
- Sites where eliminating any material-transition point is a documented engineering priority
Conditions where hybrid is commonly appropriate:
- Standard residential loads on single-story or light two-story homes
- Typical bearing depths for the local soil profile
- Homeowner priority to achieve a strong long-term repair at lower total cost
- Sites where soil chemistry at depth is stable and concrete performs reliably
In many Pflugerville residential situations, both systems can deliver an appropriate repair. The engineer's job is to confirm which system fits the specific site conditions, not to default to the more expensive option.

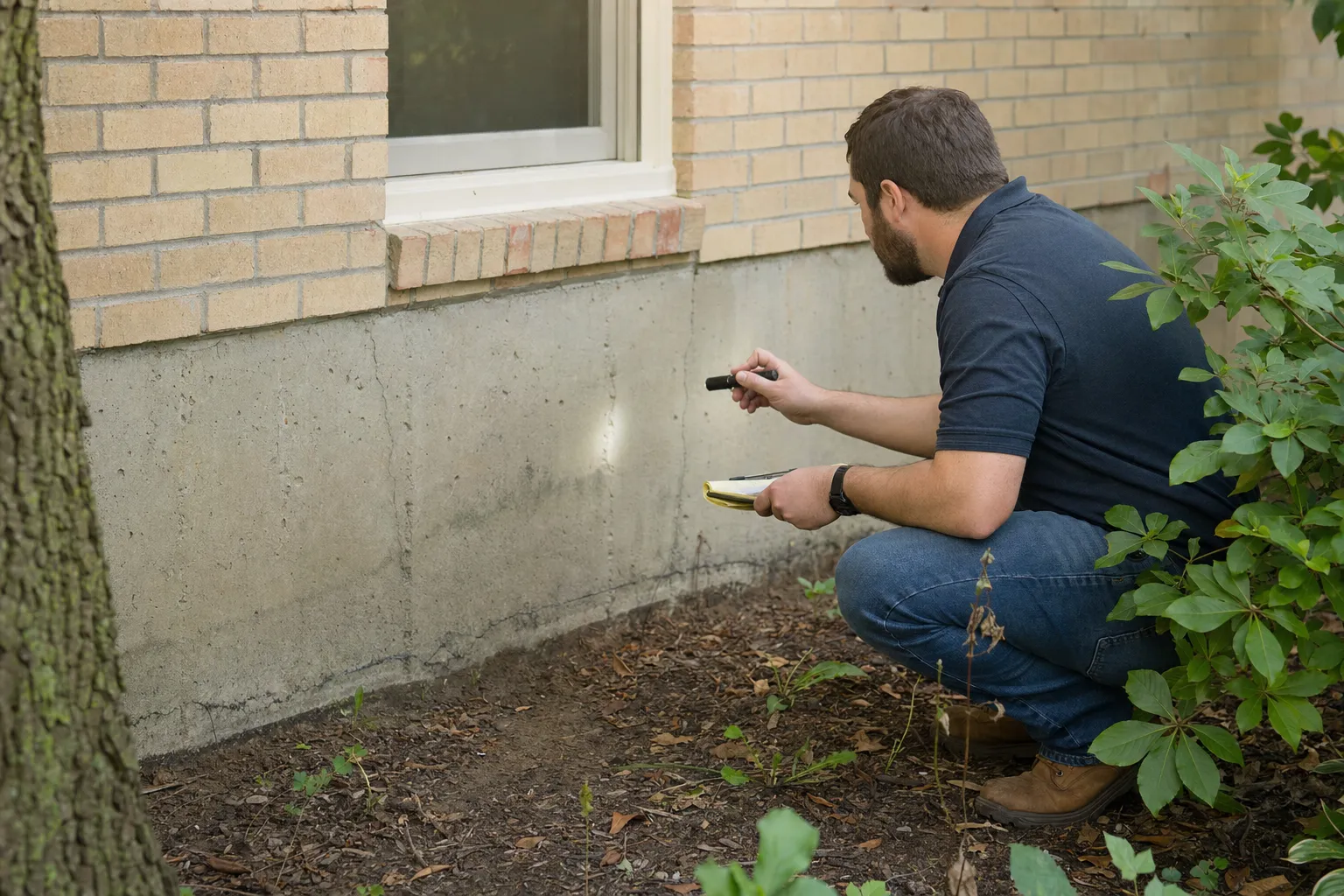

The free foundation assessment we offer includes a full walkthrough of findings before any repair system is recommended. Homeowners learn what their site actually needs before a pier type is proposed. That sequence matters in a market where the median home value in Pflugerville's 78660 ZIP code sits at $335,500 and homeowners comparison-shop carefully before committing to a repair plan.
Does Pier Type Affect Foundation Repair Warranties?
Pier type can affect warranty terms. Ask your contractor specifically what each system carries before agreeing to a repair plan — do not assume warranties are identical across pier types or contractors.
Why does a transferable warranty matter when selling a Pflugerville home?
A transferable warranty means coverage can pass from the current owner to a future buyer. That is directly relevant in Pflugerville, where 70% of 41,319 housing units are owner-occupied and resale value is tied to documented foundation health. Buyers increasingly request foundation inspection reports and repair records during due diligence.
A lifetime transferable warranty on slab pier installations turns a repair record into a documentable asset on a home sale, not a disclosed liability. That distinction matters when a buyer's inspector flags foundation work in the disclosure.
The City of Pflugerville and Travis County require permits for structural foundation repair in most cases. Unpermitted foundation work can create title and resale complications that are difficult to resolve after the fact. Permitted work paired with a transferable warranty provides the cleanest possible documentation at resale.
Warranty terms are a direct question for the free assessment conversation. The confirmed scope for Bats Foundation's lifetime transferable warranty covers slab pier systems. Confirm which pier system and which installation scope that warranty applies to before signing any repair agreement.
The Bottom Line
Both hybrid steel piers and all-steel piers reach the same goal, stable bearing below active clay soils. Construction differences are real and carry engineering weight, but engineer-reviewed repair plans match the correct system to each site's soil depth, load, and conditions rather than defaulting to the more expensive option. A free, no-pressure foundation assessment is the right starting point: findings get explained before any system is recommended, so you know what your site actually needs before work begins.
